Hotron HR50 Bi Directional Sensor

Description

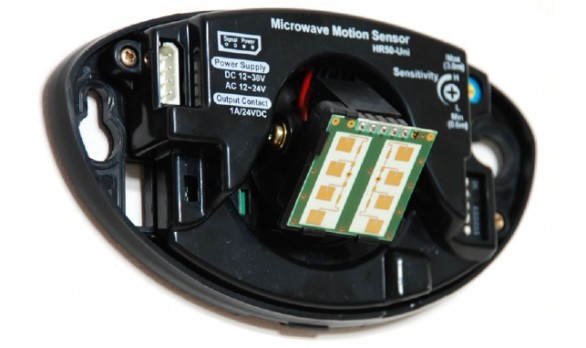

Hotron HR50 Bi Directional Sensor

Key Features & Benefits:

• Uni-directional & Bi-directional Detection:

  • HR50-UNI: Uni-directional sensing reduces door-open time and energy loss by detecting approaching traffic only.

  • HR50: Bi-directional sensing provides reliable detection for traffic approaching from both directions.

• Turtle Mode for Enhanced Safety:
  Specially designed “Turtle Mode” ensures optimal pedestrian safety by carefully controlling door activation speeds.

• Flexible Mounting Options:
  Highly adjustable antenna design allows mounting either above doors or on ceilings, offering versatile installation solutions for heights up to 4 metres.

• Interchangeable Antenna:
  Choose between narrow or wide detection areas to precisely match installation requirements, improving accuracy and preventing unnecessary activations.

• Attractive, Compact Design:
  Small, discreet sensor complements any modern door style without compromising aesthetics.

Technical Specifications:

• Detection Technology: 24.125 GHz Microwave (K-band)

• Maximum Installation Height: 4.0m (13.1 ft)

• Detection Area: Up to 5m (W) x 3m (D) at 2.2m mounting height

• Power Supply: 12–30V DC, 12–24V AC

• Power Consumption: Less than 1.4W (40mA at DC24V)

• Operating Temperature: -30°C to +55°C (-22°F to +131°F)

• Dimensions: 120mm (W) x 70mm (H) x 41.5mm (D)

• IP Rating: IP54 (suitable for indoor and outdoor use)

• Weight: 91g (sensor), 160g (including box).
